03 k8s使用helm 安装prometheus详细步骤
Kubernetes 安装Prometheus¶
背景¶
部署过程¶
前置¶
1、 害怕集群资源不够，可使用ResourceQuota对集群的资源进行限制
apiVersion: v1
kind: ResourceQuota
metadata:
name: devops-resources
namespace: devops
spec:
hard:
requests.cpu: "4"
requests.memory: 8Gi
limits.cpu: "8"
limits.memory: 16Gi

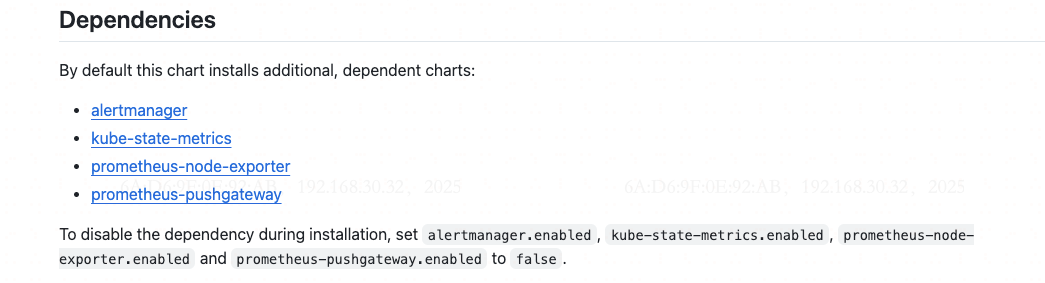

1、 根据文档描述，本次需要部署 prometheus 服务，从官方文档中可以看到，Prometheus 需要依赖于如下四个服务；
2、下面开始使用helm 对服务进行部署
## 将prometheus chart 加入到本地helm 仓库
$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
3、拉取helm-charts 并根据实际情况修改charts
## 查询所有的helm 插件
$ helm search repo prometheus-community
4、 开始拉取Prometheus 的helm-charts ，参考文档
$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$ helm repo update
5、将Prometheus 拉取下来，并对服务进行修改
$ helm pull --untar prometheus-community/prometheus
6、修改配置，不部署certmanager
7、使用helm 命令对服务进行部署，部署完成如下
$ helm upgrade --install -n monitor --create-namespace prometheus prometheus-community/prometheus -f ./values.yaml
执行完成后有如下配置：
Release "prometheus" does not exist. Installing it now.
NAME: promethesu
LAST DEPLOYED: Mon Jun 23 10:56:58 2025
NAMESPACE: monitor
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
The Prometheus server can be accessed via port 80 on the following DNS name from within your cluster:
promethesu-prometheus-server.monitor.svc.cluster.local
Get the Prometheus server URL by running these commands in the same shell:
export POD_NAME=$(kubectl get pods --namespace monitor -l "app.kubernetes.io/name=prometheus,app.kubernetes.io/instance=promethesu" -o jsonpath="{.items[0].metadata.name}")
kubectl --namespace monitor port-forward $POD_NAME 9090
#################################################################################
###### WARNING: Pod Security Policy has been disabled by default since #####
###### it deprecated after k8s 1.25+. use #####
###### (index .Values "prometheus-node-exporter" "rbac" #####
###### . "pspEnabled") with (index .Values #####
###### "prometheus-node-exporter" "rbac" "pspAnnotations") #####
###### in case you still need it. #####
#################################################################################
The Prometheus PushGateway can be accessed via port 9091 on the following DNS name from within your cluster:
promethesu-prometheus-pushgateway.monitor.svc.cluster.local
Get the PushGateway URL by running these commands in the same shell:
export POD_NAME=$(kubectl get pods --namespace monitor -l "app=prometheus-pushgateway,component=pushgateway" -o jsonpath="{.items[0].metadata.name}")
kubectl --namespace monitor port-forward $POD_NAME 9091
For more information on running Prometheus, visit:
https://prometheus.io/
部署完成后进行检查,全部正常运行后表示没问题；
$ k get pod -n monitor
NAME READY STATUS RESTARTS AGE
promethesu-kube-state-metrics-7f8996fcbd-mlbnf 1/1 Running 0 7m43s
promethesu-prometheus-node-exporter-78mzz 1/1 Running 0 7m43s
promethesu-prometheus-pushgateway-674bc4555c-cqrrk 1/1 Running 0 7m43s
promethesu-prometheus-server-6fdf6d65bc-drlr4 2/2 Running 0 7m43s
部署Grafana¶
1、将 Grafana 的helm-charts 仓库加入到本地
$ helm repo add grafana https://grafana.github.io/helm-charts
2、 参考此文档，对Grafana 进行部署
## 添加仓库
$ helm repo add grafana https://grafana.github.io/helm-charts
$ helm repo update
3、 将helm-charts 的values 拉下来到本地环境中，并开始手动修改配置
$ helm show values grafana/grafana > values.yaml
4、 根据实际情况修改values.yaml
$ cat > values.yaml << EOF
grafana.ini:
server:
domain: monitoring.example.com
root_url: "%(protocol)://%(domain)s/grafana"
serve_from_sub_path: true
ingress:
enabled: true
ingressClassName: nginx
hosts:
- "monitoring.example.com"
path: "/grafana"
persistence:
enabled: true
storageClassName: csi-disk
EOF
5、部署 Grafana
$ helm upgrade --install -n monitor --create-namespace grafana grafana/grafana -f values.yaml
6、部署完成之后会有如下显示：
Release "grafana" does not exist. Installing it now.
NAME: grafana
LAST DEPLOYED: Mon Jun 23 11:40:44 2025
NAMESPACE: monitor
STATUS: deployed
REVISION: 1
NOTES:
1. Get your 'admin' user password by running:
kubectl get secret --namespace monitor grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo
2. The Grafana server can be accessed via port 80 on the following DNS name from within your cluster:
grafana.monitor.svc.cluster.local
If you bind grafana to 80, please update values in values.yaml and reinstall:
securityContext:
runAsUser: 0
runAsGroup: 0
fsGroup: 0
command:
- "setcap"
- "'cap_net_bind_service=+ep'"
- "/usr/sbin/grafana-server &&"
- "sh"
- "/run.sh"
Details refer to https://grafana.com/docs/installation/configuration/#http-port.
Or grafana would always crash.
From outside the cluster, the server URL(s) are:
http://monitoring.downloadcenter.site
3. Login with the password from step 1 and the username: admin
部署 Cadvisor¶
1、将cadvisor 仓库加入到本地helm 配置
$ helm repo add ckotzbauer https://ckotzbauer.github.io/helm-charts
$ helm repo update
问题处理：

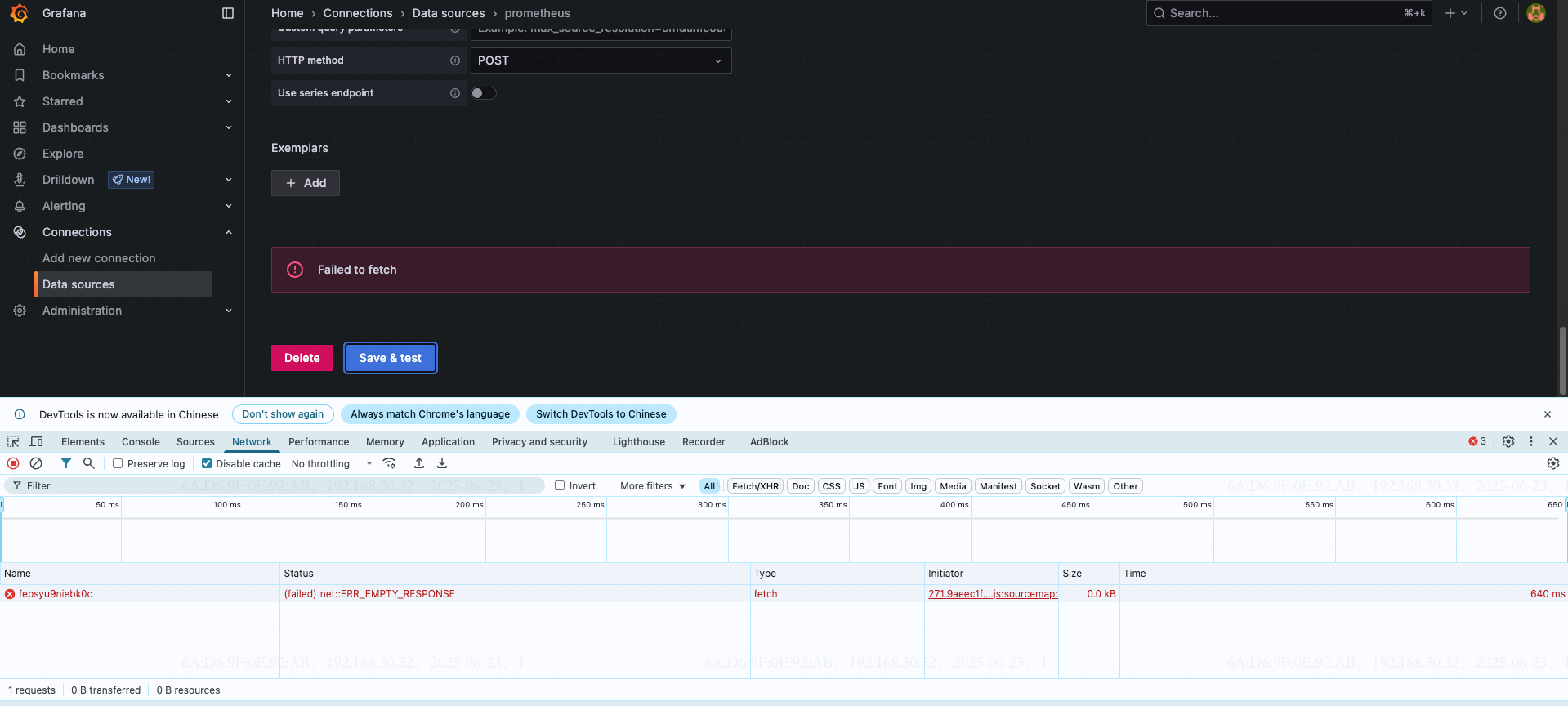

1、添加datasource时报错
解决：
手动添加数据源
$ curl -X POST http://grafana.monitor/api/datasources -u admin:edlB9W4smvP7voyudBX2ROoV4r279K8IEleS4mRl \
-H "Content-Type: application/json" \
-d @- <<EOF
{
"name": "Prometheus",
"type": "prometheus",
"url": "http://prometheus-server.monitor",
"access": "proxy",
"isDefault": true,
"jsonData": {},
"readOnly": false
}
EOF
