01 部署步骤
部署步骤¶
中间件部署¶
RocketMQ 部署¶
- 版本 5.4.0
- 配置 ：1broker 1nameserv 1 proxy 1 dashboard
| 组件 | 配置 | 端口 |
|---|---|---|
| rmqbroker | 0.5C2G | 172.27.0.12:10911,172.27.0.12:10909 |
| rmqnamesrv | 0.5C1G | 172.27.0.12:9876 |
| rmqproxy | 0.5C0.5G | 172.27.0.12:8080,172.27.0.12:8081 |
部署方式： docker-compose 部署
version: '3.8'
services:
namesrv:
image: apache/rocketmq:5.4.0
container_name: rmqnamesrv
ports:
- 9876:9876
networks:
- rocketmq
command: sh mqnamesrv
volumes:
- ${PWD}/broker/broker.conf:/home/rocketmq/rocketmq-5.4.0/conf/broker.conf
- ${PWD}/namesrv/logs:/home/rocketmq/logs
- ${PWD}/namesrv/store:/home/rocketmq/store
security_opt:
- seccomp=unconfined
deploy:
resources:
limits:
cpus: '0.5'
memory: 1024M
reservations:
cpus: '0.25'
memory: 256M
broker:
image: apache/rocketmq:5.4.0
container_name: rmqbroker
volumes:
- ${PWD}/broker/broker.conf:/home/rocketmq/rocketmq-5.4.0/conf/broker.conf
- ${PWD}/broker/logs:/home/rocketmq/logs
- ${PWD}/broker/store:/home/rocketmq/store
ports:
- 10911:10911
- 10909:10909
environment:
- NAMESRV_ADDR=namesrv:9876
- JAVA_OPT_EXT=-Xms128m -Xmx1g
depends_on:
- namesrv
networks:
- rocketmq
command: sh mqbroker -c /home/rocketmq/rocketmq-5.4.0/conf/broker.conf
security_opt:
- seccomp=unconfined
deploy:
resources:
limits:
cpus: '0.5'
memory: 2048M
reservations:
cpus: '0.25'
memory: 256M
proxy:
image: apache/rocketmq:5.4.0
container_name: rmqproxy
networks:
- rocketmq
depends_on:
- broker
- namesrv
ports:
- 8080:8080
- 8081:8081
restart: on-failure
environment:
- NAMESRV_ADDR=namesrv:9876
command: sh mqproxy
security_opt:
- seccomp=unconfined
deploy:
resources:
limits:
cpus: '0.5'
memory: 512M
reservations:
cpus: '0.25'
memory: 256M
networks:
rocketmq:
driver: bridge
broker/broker.conf 文件内容如下
brokerClusterName = DefaultCluster
brokerName = broker-a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = ASYNC_MASTER
flushDiskType = ASYNC_FLUSH
# add
maxMessageSize = 65536
autoCreateSubscriptionGroup = true
autoCreateTopicEnable = true
namesrvAddr = 172.27.0.12:9876
brokerIP1 = 172.27.0.12
listenPort = 10911
fastListenPort = 10909
haListenPort = 10912
# 1. 消息保留时间（小时），默认48小时（即2天）
fileReservedTime=30
# 2. 删除文件的时间点，默认为"04"，表示凌晨4点
deleteWhen=04
# 3. 磁盘使用率达到多少时强制清理（4.8.0版本为70，5.x版本为75）
# 当磁盘使用率达到85%时，无论是否过期都会清理
diskMaxUsedSpaceRatio=85
rocketmq Dashboard 使用docker build 编译
FROM maven:3.6.3-openjdk-17 as base
RUN mkdir -p /workspace
WORKDIR /workspace
RUN git clone https://github.com/apache/rocketmq-dashboard.git
WORKDIR /workspace/rocketmq-dashboard
RUN mvn clean package -Dmaven.test.skip=true
FROM openjdk:27-ea-17-jdk
COPY --from=base /workspace/rocketmq-dashboard/target/rocketmq-dashboard-2.1.1-SNAPSHOT.jar /opt/rocketmq-dashboard-2.1.1-SNAPSHOT.jar
WORKDIR /opt
CMD ["bash","-c","java ${JVM_OPTS} -jar /opt/rocketmq-dashboard-2.1.1-SNAPSHOT.jar ${JAVA_OPTS}"]
Redis 部署¶
- 版本： redis7.0
| Redis组件 | 规格 | 连接 |
|---|---|---|
| redis | 1C/2G | 172.27.0.12:6379 |
docker-compose文件如下
version: '3.8'
services:
redis:
image: redis:7.0
container_name: redis-server
restart: unless-stopped
deploy:
resources:
limits:
cpus: '1.0'
memory: 2048M
reservations:
cpus: '0.5'
memory: 256M
ports:
- "6379:6379"
volumes:
- ${PWD}/redis-data:/data
- ${PWD}/conf/redis.conf:/usr/local/etc/redis/redis.conf:ro
- ${PWD}/logs:/var/log/redis
command: redis-server /usr/local/etc/redis/redis.conf
networks:
- redis-network
healthcheck:
test: ["CMD", "redis-cli", "ping"]
interval: 30s
timeout: 10s
retries: 3
start_period: 10s
logging:
driver: "json-file"
options:
max-size: "10m"
max-file: "3"
networks:
redis-network:
driver: bridge
conf/redis.conf文件如下
# 持久化配置
appendonly yes
appendfsync everysec
# RDB 快照配置
save 900 1
save 300 10
save 60 10000
# 内存管理
maxmemory 256mb
maxmemory-policy allkeys-lru
requirepass SDB7WyKNS3dIZF
# 其他优化配置
tcp-backlog 511
timeout 0
tcp-keepalive 300
daemonize no
pidfile /var/run/redis_6379.pid
loglevel notice
logfile /var/log/redis/redis.log
databases 16
stop-writes-on-bgsave-error yes
rdbcompression yes
rdbchecksum yes
dbfilename dump.rdb
dir /data
nacos 部署¶
- 版本： nacos-server 3.2.1
| Nacos组件 | 规格 | 连接 | |
|---|---|---|---|
| Mysql | 1C2G | 172.27.0.12:3306 | |
| Nacos | 1C/2G | 172.27.0.12:8848,172.27.0.12:9848 | |
Docker-compose 配置如下
version: "3.8"
services:
nacos:
image: nacos/nacos-server:v3.2.1
container_name: nacos-standalone-mysql
environment:
- PREFER_HOST_MODE=hostname
- MODE=standalone
- SPRING_DATASOURCE_PLATFORM=mysql
- MYSQL_SERVICE_HOST=mysql
- MYSQL_SERVICE_DB_NAME=nacos
- MYSQL_SERVICE_PORT=3306
- MYSQL_SERVICE_USER=nacos
- MYSQL_SERVICE_PASSWORD=18HvQxGQv3417y
- MYSQL_SERVICE_DB_PARAM=characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true
- NACOS_AUTH_IDENTITY_KEY=5X2hUYv2nPb3ln
- NACOS_AUTH_IDENTITY_VALUE=5X2hUYv2nPb3ln
- NACOS_AUTH_TOKEN=VGhpc0lzTXlDdXN0b21TZWNyZXRLZXkwMTIzNDU2Nzg=
volumes:
- ./standalone-logs/:/home/nacos/logs
ports:
- "18080:8080"
- "8848:8848"
- "9848:9848"
depends_on:
mysql:
condition: service_healthy
restart: always
deploy:
resources:
limits:
cpus: '1'
memory: 2048M
reservations:
cpus: '0.25'
memory: 256M
mysql:
container_name: mysql
image: mysql:8.0-bookworm
environment:
- MYSQL_ROOT_PASSWORD=root
- MYSQL_DATABASE=nacos
- MYSQL_USER=nacos
- MYSQL_PASSWORD=18HvQxGQv3417y
- LANG=C.UTF-8
volumes:
- ${PWD}/mysql:/var/lib/mysql
command:
--character-set-server=utf8mb4
--collation-server=utf8mb4_unicode_ci
ports:
- "3306:3306"
healthcheck:
test: [ "CMD", "mysqladmin" ,"ping", "-h", "localhost" ]
interval: 5s
timeout: 10s
retries: 10
deploy:
resources:
limits:
cpus: '1'
memory: 2048M
reservations:
cpus: '0.25'
memory: 256M
数据库初始化脚本 nacos：3.2.1
/*
* Copyright 1999-2018 Alibaba Group Holding Ltd.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
/******************************************/
/* 表名称 = config_info */
/******************************************/
CREATE TABLE `config_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) DEFAULT NULL COMMENT 'group_id',
`content` longtext NOT NULL COMMENT 'content',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COMMENT 'source user',
`src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
`c_desc` varchar(256) DEFAULT NULL COMMENT 'configuration description',
`c_use` varchar(64) DEFAULT NULL COMMENT 'configuration usage',
`effect` varchar(64) DEFAULT NULL COMMENT '配置生效的描述',
`type` varchar(64) DEFAULT NULL COMMENT '配置的类型',
`c_schema` text COMMENT '配置的模式',
`encrypted_data_key` varchar(1024) NOT NULL DEFAULT '' COMMENT '密钥',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';
/******************************************/
/* 表名称 = config_info since 2.5.0 */
/******************************************/
CREATE TABLE `config_info_gray` (
`id` bigint unsigned NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`content` longtext NOT NULL COMMENT 'content',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`src_user` text COMMENT 'src_user',
`src_ip` varchar(100) DEFAULT NULL COMMENT 'src_ip',
`gmt_create` datetime(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3) COMMENT 'gmt_create',
`gmt_modified` datetime(3) NOT NULL DEFAULT CURRENT_TIMESTAMP(3) COMMENT 'gmt_modified',
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
`gray_name` varchar(128) NOT NULL COMMENT 'gray_name',
`gray_rule` text NOT NULL COMMENT 'gray_rule',
`encrypted_data_key` varchar(256) NOT NULL DEFAULT '' COMMENT 'encrypted_data_key',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfogray_datagrouptenantgray` (`data_id`,`group_id`,`tenant_id`,`gray_name`),
KEY `idx_dataid_gmt_modified` (`data_id`,`gmt_modified`),
KEY `idx_gmt_modified` (`gmt_modified`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8 COMMENT='config_info_gray';
/******************************************/
/* 表名称 = config_tags_relation */
/******************************************/
CREATE TABLE `config_tags_relation` (
`id` bigint(20) NOT NULL COMMENT 'id',
`tag_name` varchar(128) NOT NULL COMMENT 'tag_name',
`tag_type` varchar(64) DEFAULT NULL COMMENT 'tag_type',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`tenant_id` varchar(128) DEFAULT '' COMMENT 'tenant_id',
`nid` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'nid, 自增长标识',
PRIMARY KEY (`nid`),
UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';
/******************************************/
/* 表名称 = group_capacity */
/******************************************/
CREATE TABLE `group_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`group_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Group ID，空字符表示整个集群',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数，，0表示使用默认值',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_group_id` (`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群、各Group容量信息表';
/******************************************/
/* 表名称 = his_config_info */
/******************************************/
CREATE TABLE `his_config_info` (
`id` bigint(20) unsigned NOT NULL COMMENT 'id',
`nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT 'nid, 自增标识',
`data_id` varchar(255) NOT NULL COMMENT 'data_id',
`group_id` varchar(128) NOT NULL COMMENT 'group_id',
`app_name` varchar(128) DEFAULT NULL COMMENT 'app_name',
`content` longtext NOT NULL COMMENT 'content',
`md5` varchar(32) DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COMMENT 'source user',
`src_ip` varchar(50) DEFAULT NULL COMMENT 'source ip',
`op_type` char(10) DEFAULT NULL COMMENT 'operation type',
`tenant_id` varchar(128) DEFAULT '' COMMENT '租户字段',
`encrypted_data_key` varchar(1024) NOT NULL DEFAULT '' COMMENT '密钥',
`publish_type` varchar(50) DEFAULT 'formal' COMMENT 'publish type gray or formal',
`gray_name` varchar(50) DEFAULT NULL COMMENT 'gray name',
`ext_info` longtext DEFAULT NULL COMMENT 'ext info',
PRIMARY KEY (`nid`),
KEY `idx_gmt_create` (`gmt_create`),
KEY `idx_gmt_modified` (`gmt_modified`),
KEY `idx_did` (`data_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='多租户改造';
/******************************************/
/* 表名称 = tenant_capacity */
/******************************************/
CREATE TABLE `tenant_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`tenant_id` varchar(128) NOT NULL DEFAULT '' COMMENT 'Tenant ID',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '配额，0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用量',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个配置大小上限，单位为字节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '聚合子配置最大个数',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '单个聚合数据的子配置大小上限，单位为字节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大变更历史数量',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容量信息表';
CREATE TABLE `tenant_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`kp` varchar(128) NOT NULL COMMENT 'kp',
`tenant_id` varchar(128) default '' COMMENT 'tenant_id',
`tenant_name` varchar(128) default '' COMMENT 'tenant_name',
`tenant_desc` varchar(256) DEFAULT NULL COMMENT 'tenant_desc',
`create_source` varchar(32) DEFAULT NULL COMMENT 'create_source',
`gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
`gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';
CREATE TABLE `users` (
`username` varchar(50) NOT NULL PRIMARY KEY COMMENT 'username',
`password` varchar(500) NOT NULL COMMENT 'password',
`enabled` boolean NOT NULL COMMENT 'enabled'
);
CREATE TABLE `roles` (
`username` varchar(50) NOT NULL COMMENT 'username',
`role` varchar(50) NOT NULL COMMENT 'role',
UNIQUE INDEX `idx_user_role` (`username` ASC, `role` ASC) USING BTREE
);
CREATE TABLE `permissions` (
`role` varchar(50) NOT NULL COMMENT 'role',
`resource` varchar(128) NOT NULL COMMENT 'resource',
`action` varchar(8) NOT NULL COMMENT 'action',
UNIQUE INDEX `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
);
xxl-job-admin 部署¶
- 版本： xxl-job-admin:2.4.2
Docker-compose 配置文件如下
version: '3.8'
services:
xxl-job-admin:
image: xuxueli/xxl-job-admin:2.4.2 # 请替换为你需要的版本
container_name: xxl-job-admin
restart: unless-stopped
ports:
- "18080:8080"
environment:
- PARAMS=--spring.datasource.url=jdbc:mysql://172.27.0.12:3306/xxl-job?useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&serverTimezone=Asia/Shanghai \
--spring.datasource.username=xxl-job \
--spring.datasource.password=mlsg1WARiG7yHK \
--xxl.job.accessToken=goQ0R4akkRxzjj
volumes:
- ${PWD}/xxl-job-data:/data/applogs
networks:
- xxl-job-network
deploy:
resources:
limits:
cpus: '0.5'
memory: 2048M
reservations:
cpus: '0.25'
memory: 256M
networks:
xxl-job-network:
driver: bridge
创建数据库
CREATE DATABASE IF NOT EXISTS `xxl-job` DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'xxl-job'@'%' IDENTIFIED BY 'mlsg1WARiG7yHK';
GRANT ALL PRIVILEGES ON `xxl-job`.`*` TO 'xxl-job'@'%' WITH GRANT OPTION;
#
# XXL-JOB
# Copyright (c) 2015-present, xuxueli.
CREATE database if NOT EXISTS `xxl_job` default character set utf8mb4 collate utf8mb4_unicode_ci;
use `xxl_job`;
SET NAMES utf8mb4;
## —————————————————————— job group and registry ——————————————————
CREATE TABLE `xxl_job_group`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`app_name` varchar(64) NOT NULL COMMENT '执行器AppName',
`title` varchar(64) NOT NULL COMMENT '执行器名称',
`address_type` tinyint(4) NOT NULL DEFAULT '0' COMMENT '执行器地址类型：0=自动注册、1=手动录入',
`address_list` text COMMENT '执行器地址列表，多地址逗号分隔',
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_registry`
(
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`registry_group` varchar(50) NOT NULL,
`registry_key` varchar(255) NOT NULL,
`registry_value` varchar(255) NOT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `i_g_k_v` (`registry_group`, `registry_key`, `registry_value`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— job info ——————————————————
CREATE TABLE `xxl_job_info`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT '执行器主键ID',
`job_desc` varchar(255) NOT NULL,
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
`author` varchar(64) DEFAULT NULL COMMENT '作者',
`alarm_email` varchar(255) DEFAULT NULL COMMENT '报警邮件',
`schedule_type` varchar(50) NOT NULL DEFAULT 'NONE' COMMENT '调度类型',
`schedule_conf` varchar(128) DEFAULT NULL COMMENT '调度配置，值含义取决于调度类型',
`misfire_strategy` varchar(50) NOT NULL DEFAULT 'DO_NOTHING' COMMENT '调度过期策略',
`executor_route_strategy` varchar(50) DEFAULT NULL COMMENT '执行器路由策略',
`executor_handler` varchar(255) DEFAULT NULL COMMENT '任务handler',
`executor_param` text DEFAULT NULL COMMENT '任务参数',
`executor_block_strategy` varchar(50) DEFAULT NULL COMMENT '阻塞处理策略',
`executor_timeout` int(11) NOT NULL DEFAULT '0' COMMENT '任务执行超时时间，单位秒',
`executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数',
`glue_type` varchar(50) NOT NULL COMMENT 'GLUE类型',
`glue_source` mediumtext COMMENT 'GLUE源代码',
`glue_remark` varchar(128) DEFAULT NULL COMMENT 'GLUE备注',
`glue_updatetime` datetime DEFAULT NULL COMMENT 'GLUE更新时间',
`child_jobid` varchar(255) DEFAULT NULL COMMENT '子任务ID，多个逗号分隔',
`trigger_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '调度状态：0-停止，1-运行',
`trigger_last_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '上次调度时间',
`trigger_next_time` bigint(13) NOT NULL DEFAULT '0' COMMENT '下次调度时间',
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_logglue`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`job_id` int(11) NOT NULL COMMENT '任务，主键ID',
`glue_type` varchar(50) DEFAULT NULL COMMENT 'GLUE类型',
`glue_source` mediumtext COMMENT 'GLUE源代码',
`glue_remark` varchar(128) NOT NULL COMMENT 'GLUE备注',
`add_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— job log and report ——————————————————
CREATE TABLE `xxl_job_log`
(
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`job_group` int(11) NOT NULL COMMENT '执行器主键ID',
`job_id` int(11) NOT NULL COMMENT '任务，主键ID',
`executor_address` varchar(255) DEFAULT NULL COMMENT '执行器地址，本次执行的地址',
`executor_handler` varchar(255) DEFAULT NULL COMMENT '任务handler',
`executor_param` text DEFAULT NULL COMMENT '任务参数',
`executor_sharding_param` varchar(20) DEFAULT NULL COMMENT '任务分片参数，格式如 1/2',
`executor_fail_retry_count` int(11) NOT NULL DEFAULT '0' COMMENT '失败重试次数',
`trigger_time` datetime DEFAULT NULL COMMENT '调度-时间',
`trigger_code` int(11) NOT NULL COMMENT '调度-结果',
`trigger_msg` text COMMENT '调度-日志',
`handle_time` datetime DEFAULT NULL COMMENT '执行-时间',
`handle_code` int(11) NOT NULL COMMENT '执行-状态',
`handle_msg` text COMMENT '执行-日志',
`alarm_status` tinyint(4) NOT NULL DEFAULT '0' COMMENT '告警状态：0-默认、1-无需告警、2-告警成功、3-告警失败',
PRIMARY KEY (`id`),
KEY `I_trigger_time` (`trigger_time`),
KEY `I_handle_code` (`handle_code`),
KEY `I_jobgroup` (`job_group`),
KEY `I_jobid` (`job_id`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
CREATE TABLE `xxl_job_log_report`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`trigger_day` datetime DEFAULT NULL COMMENT '调度-时间',
`running_count` int(11) NOT NULL DEFAULT '0' COMMENT '运行中-日志数量',
`suc_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行成功-日志数量',
`fail_count` int(11) NOT NULL DEFAULT '0' COMMENT '执行失败-日志数量',
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `i_trigger_day` (`trigger_day`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— lock ——————————————————
CREATE TABLE `xxl_job_lock`
(
`lock_name` varchar(50) NOT NULL COMMENT '锁名称',
PRIMARY KEY (`lock_name`)
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— user ——————————————————
CREATE TABLE `xxl_job_user`
(
`id` int(11) NOT NULL AUTO_INCREMENT,
`username` varchar(50) NOT NULL COMMENT '账号',
`password` varchar(100) NOT NULL COMMENT '密码加密信息',
`token` varchar(100) DEFAULT NULL COMMENT '登录token',
`role` tinyint(4) NOT NULL COMMENT '角色：0-普通用户、1-管理员',
`permission` varchar(255) DEFAULT NULL COMMENT '权限：执行器ID列表，多个逗号分割',
PRIMARY KEY (`id`),
UNIQUE KEY `i_username` (`username`) USING BTREE
) ENGINE = InnoDB
DEFAULT CHARSET = utf8mb4;
## —————————————————————— for default data ——————————————————
INSERT INTO `xxl_job_group`(`id`, `app_name`, `title`, `address_type`, `address_list`, `update_time`)
VALUES (1, 'xxl-job-executor-sample', '通用执行器Sample', 0, NULL, now()),
(2, 'xxl-job-executor-sample-ai', 'AI执行器Sample', 0, NULL, now());
INSERT INTO `xxl_job_info`(`id`, `job_group`, `job_desc`, `add_time`, `update_time`, `author`, `alarm_email`,
`schedule_type`, `schedule_conf`, `misfire_strategy`, `executor_route_strategy`,
`executor_handler`, `executor_param`, `executor_block_strategy`, `executor_timeout`,
`executor_fail_retry_count`, `glue_type`, `glue_source`, `glue_remark`, `glue_updatetime`,
`child_jobid`)
VALUES (1, 1, '示例任务01', now(), now(), 'XXL', '', 'CRON', '0 0 0 * * ? *',
'DO_NOTHING', 'FIRST', 'demoJobHandler', '', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), ''),
(2, 2, 'Ollama示例任务', now(), now(), 'XXL', '', 'NONE', '',
'DO_NOTHING', 'FIRST', 'ollamaJobHandler', '{
"input": "Java实现二叉树层序遍历",
"prompt": "你是一个研发工程师，擅长解决技术类问题。",
"model": "qwen3.5:2b"
}', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), ''),
(3, 2, 'Dify示例任务', now(), now(), 'XXL', '', 'NONE', '',
'DO_NOTHING', 'FIRST', 'difyWorkflowJobHandler', '{
"inputs":{
"input":"查询班级各学科前三名"
},
"user": "xxl-job",
"baseUrl": "http://localhost/v1",
"apiKey": "app-OUVgNUOQRIMokfmuJvBJoUTN"
}', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), ''),
(4, 2, 'OpenClaw示例任务', now(), now(), 'XXL', '', 'NONE', '',
'DO_NOTHING', 'FIRST', 'openClawJobHandler', '{
"input": "查看下上海今天得天气，给出出游建议",
"prompt": "你是一个出游助手，擅长做旅游规划"
}', 'SERIAL_EXECUTION', 0, 0, 'BEAN', '', 'GLUE代码初始化',
now(), '');
INSERT INTO `xxl_job_user`(`id`, `username`, `password`, `role`, `permission`)
VALUES (1, 'admin', 'e10adc3949ba59abbe56e057f20f883e', 1, NULL);
INSERT INTO `xxl_job_lock` (`lock_name`)
VALUES ('schedule_lock');
commit;
Postgres¶
docker-compose 配置文件
version: '3.8'
services:
postgres:
image: postgres:18.3
container_name: postgres-18.3
restart: unless-stopped
environment:
POSTGRES_USER: admin
POSTGRES_PASSWORD: tK9wHM4r&veYsB
POSTGRES_DB: postgres
TZ: Asia/Shanghai
ports:
- "5432:5432"
volumes:
- ${PWD}/postgres_data:/var/lib/postgresql
healthcheck:
test: ["CMD-SHELL", "pg_isready -U admin -d postgres"]
interval: 30s
timeout: 10s
retries: 5
deploy:
resources:
limits:
cpus: '3.0'
memory: 6G
reservations:
cpus: '0.5'
memory: 512M

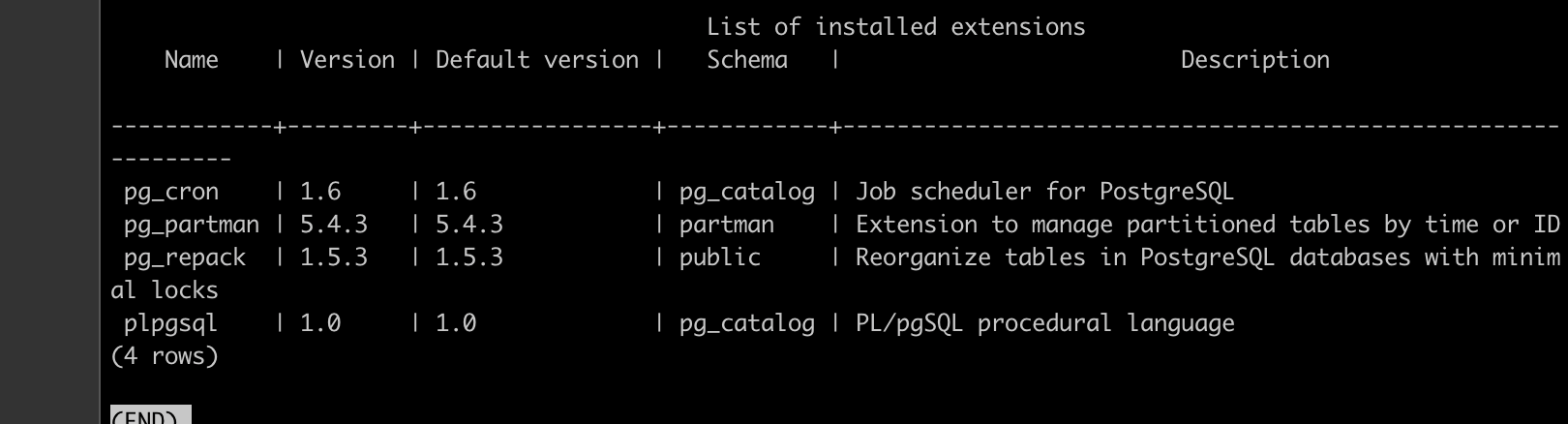

Postgres 安装插件pg_partman pg_cron pg_repack
Dockerfile 如下:
# 使用官方 PostgreSQL 18.3 镜像 (基于 Debian)
FROM postgres:18.3
# 安装所需的插件
RUN apt-get update && apt-get install -y --no-install-recommends \
postgresql-18-partman \
postgresql-18-cron \
postgresql-18-repack \
postgresql-18-hypopg \
&& rm -rf /var/lib/apt/lists/*
RUN apt-get update && apt-get install -y git make
RUN git clone https://github.com/supabase/index_advisor && \
cd index_advisor && \
make && \
make install
# 将 pg_cron 加入预加载库
RUN echo "shared_preload_libraries = 'pg_cron'" >> /usr/share/postgresql/postgresql.conf.sample
COPY init-extensions.sql /docker-entrypoint-initdb.d/
init-extensions.sql 文件如下:
-- init-db.sql
-- 创建 pg_partman
CREATE SCHEMA IF NOT EXISTS partman;
CREATE EXTENSION IF NOT EXISTS pg_partman SCHEMA partman;
-- 创建 pg_cron (必须在 postgres 库中执行)
CREATE EXTENSION IF NOT EXISTS pg_cron;
-- 创建 pg_repack
CREATE EXTENSION IF NOT EXISTS pg_repack;
-- 创建index_advisor
CREATE EXTENSION hypopg; -- 依赖项
CREATE EXTENSION index_advisor;
如果是第一次安装,/var/lib/postgresql 为空的情况下,可以直接使用docker-compose 启动,会自动执行/docker-entrypoint-initdb.d/ 下的脚本
如果是在用的数据库需要手动修改
修改步骤如下:
- 修改: /var/lib/postgresql/18/docker/postgresql.conf 文件 的shared_preload_libraries = 'pg_cron'
- 手动执行init-extensions.sql
- 在psql 中使用\dx 来查看分区
Openobserve¶
Docker-compose 安装步骤
services:
openobserve:
image: openobserve/openobserve:v0.90.0-rc3
deploy:
resources:
limits:
cpus: '2'
memory: 4Gi
reservations:
cpus: '0.25'
memory: 200M
restart: unless-stopped
environment:
ZO_ROOT_USER_EMAIL: "admin@bmyf.tech"
ZO_ROOT_USER_PASSWORD: "wPULWsoF5@t#Qr"
ports:
- "5080:5080"
volumes:
- ${PWD}/data:/data
networks:
- openobserve
networks:
openobserve:
driver: bridge
Vector安装步骤¶
Vector docker-compose 安装步骤
version: '3.8'
services:
vector:
image: timberio/vector:nightly-debian
container_name: vector
# 重启策略
restart: unless-stopped
volumes:
# 1. 挂载配置文件到容器内
- ${PWD}/conf/vector.yaml:/etc/vector/vector.yaml:ro
# 2. (关键) 挂载宿主机的 Docker 套接字
- /var/run/docker.sock:/var/run/docker.sock:ro
# 3. (可选) 用于磁盘缓冲的持久化目录
- ${PWD}/vector-data:/var/lib/vector
environment:
- VECTOR_ENV=prod-channel-user
healthcheck:
test: ["CMD", "vector", "list"]
interval: 30s
timeout: 10s
retries: 3
Vector.yaml 文件
# vector.yaml
api:
# 启用 API 以监控 Vector 自身状态（可选）
enabled: true
address: "0.0.0.0:8686"
# 1. 定义数据从哪里来 (Sources)
sources:
# 采集所有 Docker 容器的日志
docker_logs:
type: docker_logs
# 排除自身容器，避免循环采集
exclude_containers:
- "vector"
# 2. 定义如何处理数据 (Transforms)
transforms:
# 解析 JSON 格式的日志
parse_json_logs:
type: remap
inputs: ["docker_logs"]
source: |
.processed_at = now()
.environment = get_env_var!("VECTOR_ENV") # 从环境变量获取环境标识
# 尝试将 .message 解析为 JSON
log_file_transform_reduce:
inputs:
- parse_json_logs
type: reduce
starts_when: match(string!(.message), r'^[0-9]{4}-[0-9]{2}-[0-9]{2}')
# 这里的配置可能需要根据你的需求进行调整
expire_after_ms: 10000 # 10秒后，如果没有新的日志行，事件会过期
flush_period_ms: 10000 # 强制每10秒将当前事件输出
max_events: 500 # 最多合并500个事件
merge_strategies:
message: "concat_newline"
# 3. 定义数据被送到哪里 (Sinks)
sinks:
# 输出到控制台（便于调试）
console_sink:
type: console
inputs: ["log_file_transform_reduce"]
encoding:
codec: json
openobserve_log_sink:
type: "http"
inputs:
- log_file_transform_reduce
uri: "http://172.27.0.9:5080/api/default/prod-channer-server/_json"
method: "post"
auth:
strategy: "basic"
user: "admin@bmyf.tech"
password: "wPULWsoF5@t#Qr"
encoding:
codec: json
compression: "gzip"
healthcheck:
enabled: false
# ======== 更多生产环境可选的 Sink 配置示例 ========
# 输出到文件
# file_sink:
# type: file
# inputs: ["parse_json_logs"]
# path: "/var/lib/vector/vector-%Y-%m-%d.log"
# encoding:
# codec: json
#
# 输出到 Elasticsearch
# elasticsearch_sink:
# type: elasticsearch
# inputs: ["parse_json_logs"]
# endpoints: ["http://elasticsearch:9200"]
# bulk:
# index: "vector-logs-%Y.%m.%d"
# encoding:
# codec: json
#
# 输出到 Loki
# loki_sink:
# type: loki
# inputs: ["parse_json_logs"]
# endpoint: "http://loki:3100"
# encoding:
# codec: json
# labels:
# container_name: "{{ container_name }}"
